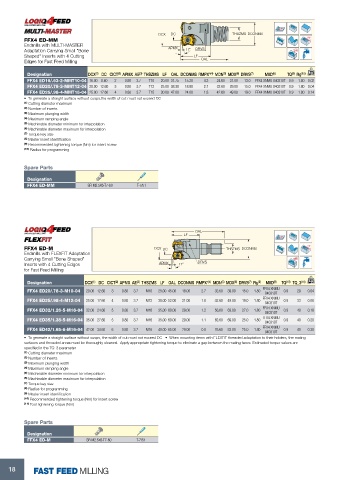

Page 18 - FAST FEED MILL Brochure_metric 2022

DCX DC THSZMS DCONMS
FFX4 ED-MM Rd°
Endmills with MULTI-MASTER APMX
Adaptation Carrying Small "Bone 17˚ DRVS
Shaped" Inserts with 4 Cutting LF
Edges for Fast Feed Milling OAL

(3)
(2)
(4)
Designation DCX (1) DC CICT APMX AE THSZMS LF OAL DCONMS RMPX° MDN (5) MDX (6) DRVS (7) MIID (8) TQ (9) Rg (10) kg
FFX4 ED16/.63-2-MMT10-04 16.00 8.60 2 0.80 3.7 T10 20.00 31.75 15.20 4.3 24.60 31.00 13.0 FFX4 XNMU 040310T 0.9 1.80 0.02
FFX4 ED20/.78-3-MMT12-04 20.00 12.60 3 0.80 3.7 T12 25.00 38.30 18.80 2.7 32.60 39.00 15.0 FFX4 XNMU 040310T 0.9 1.80 0.04
FFX4 ED25/.98-4-MMT15-04 25.00 17.60 4 0.80 3.7 T15 30.00 47.00 24.00 1.8 42.60 49.00 19.0 FFX4 XNMU 040310T 0.9 1.80 0.14
• To generate a straight surface without cusps,the width of cut must not exceed DC
(1) Cutting diameter maximum
(2) Number of inserts
(3) Maximum plunging width
(4) Maximum ramping angle
(5) Machinable diameter minimum for interpolation
(6) Machinable diameter maximum for interpolation
(7)
Torque key size
(8) Master insert identification
(9) Recommended tightening torque (Nm) for insert screw
(10) Radius for programming

Spare Parts

Designation
FFX4 ED-MM SR M2.5X6-T7-60 T-7/51

OAL
LF

FFX4 ED-M DCX DC THSZMS DCONMS Rd°
Endmills with FLEXFIT Adaptation
Carrying Small "Bone Shaped"
Inserts with 4 Cutting Edges APMX 17˚ DRVS
for Fast Feed Milling

(2)
Designation DCX (1) DC CICT APMX AE (3) THSZMS LF OAL DCONMS RMPX° (4) MDN MDX (6) DRVS (7) Rg (8) MIID (9) TQ (10) TQ_3 (11) kg
(5)
FFX4 ED20/.78-3-M10-04 20.00 12.60 3 0.80 3.7 M10 25.00 45.00 18.00 2.7 32.60 39.00 15.0 1.80 FFX4 XNMU 0.9 29 0.04
040310T
FFX4 ED25/.98-4-M12-04 25.00 17.60 4 0.80 3.7 M12 30.00 52.00 21.00 1.8 42.60 49.00 19.0 1.80 FFX4 XNMU 0.9 33 0.08
040310T
FFX4 XNMU
FFX4 ED32/1.26-5-M16-04 32.00 24.60 5 0.80 3.7 M16 35.00 60.00 29.00 1.2 56.60 63.00 27.0 1.80 040310T 0.9 40 0.18
FFX4 XNMU
FFX4 ED35/1.38-5-M16-04 35.00 27.60 5 0.80 3.7 M16 35.00 60.00 29.00 1.1 62.60 69.00 25.0 1.80 040310T 0.9 40 0.20
FFX4 XNMU
FFX4 ED42/1.65-6-M16-04 42.00 34.60 6 0.80 3.7 M16 40.00 65.00 29.00 0.8 76.60 83.00 25.0 1.80 040310T 0.9 40 0.30
• To generate a straight surface without cusps, the width of cut must not exceed DC • When mounting items with FLEXFIT threaded adaptation to their holders, the mating
surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are
specified in the TQ_3 parameter
(1) Cutting diameter maximum
(2) Number of inserts
(3) Maximum plunging width
(4) Maximum ramping angle
(5) Machinable diameter minimum for interpolation
(6) Machinable diameter maximum for interpolation
(7) Torque key size
(8) Radius for programming
(9) Master insert identification
(10) Recommended tightening torque (Nm) for insert screw
(11) Tool tightening torque (Nm)

Spare Parts
Designation
FFX4 ED-M SR M2.5X6-T7-60 T-7/51

18 FAST FEED MILLING
